    SAW touch screen Dust-proof Series with Aluminum frame



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES

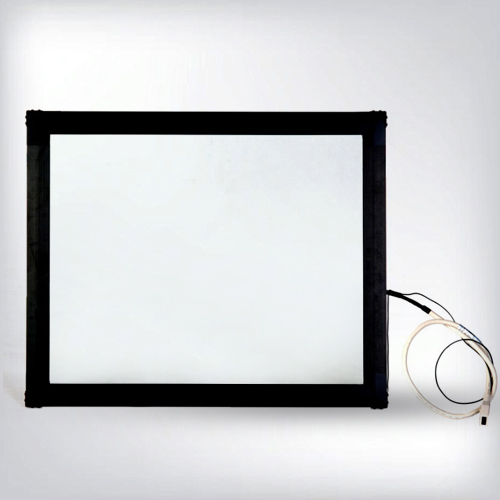

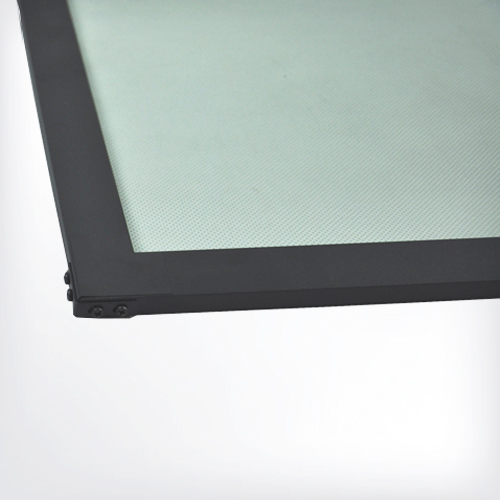

    SAW touch screen with Aluminum frame dust-proof & Water-proof type
    Dust-proof function
    Applicable to the outdoor environment


    Sizes Model No Thickness
    (mm)
    Glass
    L*W(mm)
    Viewable
    L*W(mm)
    Active
    L*W(mm)
    12.1" ETS-0121S-6D 6 295*233 246*184 246*184
    15.1" ETS-0151S-4D 4 355*279 306*230 306*230
    15.1" ETS-0151S-6DW 6 344*268 304*228 304*228
    15.4" ETS-0154S-4D 4 401*273 339*211 339*211
    17" ETS-0170S-4D 4 389*321 340*272 340*272
    17" ETS-0170S-4D 4 388*320 338*270 338*270
    19" ETS-0190S-6DW 6 458*305 409*256 409*256
    21.5" ETS-0215S-4DW 4 526*317 477*268 477*268
    23" ETS-0230S-6DW 6 561*338 512*289 512*289
    Type Aluminum frame, dust-proof
    Technology Surface acoustic wave, compact aluminum frame
    Size 12.1"~42" available, above 23” is customization service
    Material Pure glass &  Aluminum frame
    Dust-proof standard IEC IP6X
    resolution 4096×4096, Z axes 256 grade
    Light transmission 90%~92%
    Accuracy <2mm 0.080 inch
    Durability Over 50,000,000 times
    Touch medium finger, gloved finger, rubber soft pen etc
    Surface hardness Mohs hardness rating of 7
    Operating temperature  -20°C to +60°C
    Storage temperature -40°C to +70°C
    Humidity 10%-90%  40°C
    Operating altitude 3800m
    Interface RS232 or USB
    Touch Activation Force 40g
    Response time ≤10ms
    Agency approval CE, FCC, RoHS

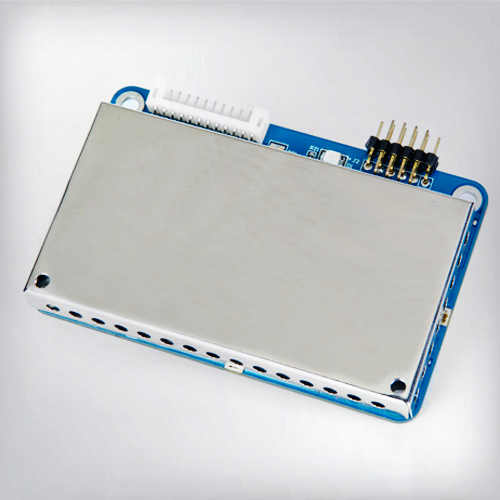

    Touch Controller
    USB cable
