    Home > Products > Touch Monitor > Open Frame > PCT >

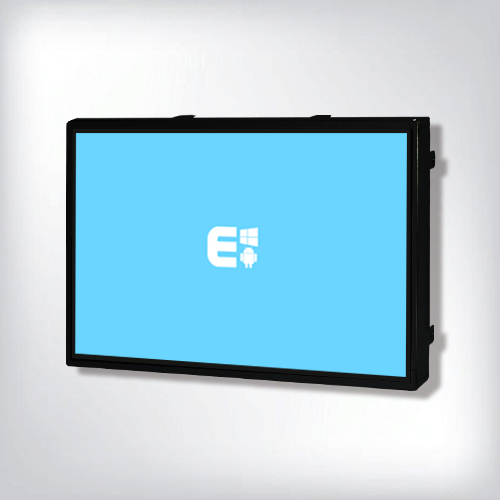

    19.5" 10 Points Open-frame PCT Touch Monitor
    EOT-0195C-M10



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    Eraytouch 19.5” Projected -Capacitive full lamination LED Open-frame Touch monitor. Projected Capacitive Touch panel directly stick to LED display, none-air gap.

    LED Open-frame 10 Points Projected Capacitive Touch Monitor Features:

    1.Product has long lifetime.

    2.The LED screen update or replacement wont change the external dimension of touch monitor.

    3.High quality LED with high brightness, high contract and wide view angle.

    4.Variety of installation ways, such as back VESA holes installation, horizontal bracket installation, vertical stand support.

    5.Easy to install in each side.

    6.Finger Touch operation.

    7.USB Interface.

    8.VGA, DVI, HDMI Input video format.

    9.Original factory full lamination projected capacitive touch screen.
    Model EOT-0195C
    Description 19.5”projected capacitive openframe touch monitor
    Size 19.5”
    configuration Openframe
    ratio 16:09
    Active size 432×239(mm)
    Product externel size length: 460mm
    width: 268mm
    thickness: 29.5mm
    Max resolution 1600×900 @ 60Hz
    Support colour 16.7M
    Brightness LED display: 300cd/m2
    (Typ.) LED display+Projected capacitive tocuh panel: 250cd/m2
    Response time(Typ.) 5ms
    View angle Horizontal:85°/85°
    (Typ.at CR>10)) Vertical:80°/80°
    Contrast Ratio (Typ.) 1000:01:00
    Video Input VGA HDMI
    Frequency(H/V) 30~80KHz / 60~75Hz
    Power Type: External power adaptor
    Input:AC100-240 V, 50-60 Hz
    Output\current: 12 V 3A
    Enviroment Working Temp:   -10~60°C
     Storage Temp:  -20~70°C
    Operation Humidity:   5%~90%
    Storage Humidity:   5%~90%
         AMTBF 50,000 hours
    Backlit light life (Typ.) 50,000 hours
    Power Comsuption  MAX 15W
    Standby Power 0.85W
    Installation mode 1)VESA,detail dimension check the specification
    2)Brackets for Horizontal or Vertical installation
    OSD buttons Buttons: AUTO, +, Power, -, Menu
    Functions: Back light, Contrast ratio, AUTO adjustment, Phase
    position, Clock, Line field location, Language, Reset, FunctionsPhase
    Touch type Projected Capacitive Touch Panel
    (10 points touch under windows 7, Single Touch under windows XP)
    Touch interface USB Interface
    Touch response time <10ms
    Warranty  2 years

    PCT OT Interface
