Eraytouch Touch foil/film is a completely transparent foil, it can be attached on the back of glass, clear acrylic and any other non-metallic flat board, a big size interactive touch screen would be created.
Available sizes : 15″up to 84″(16:9, 16:10 or 4:3) diagonal, customized size touch foil touch screens are available upon request.
Main Features:
• Wide range of screens sizes available
• Support with Windows 7/8 , Mac and Linux.
• Compatible with all LCD displays and with Projectors using rear projection film( holographic projection)
• Suitable in high ambient light
• Vandal & shock resistant
• Single cable for power & connection
• Easy to clean
• Long life expectancy
• Thru-Glass film sticks on any glass or acrylic surfaces
• Robust through glass Multi-touch detection
• Pre-loaded ready to use applications which you can easily customize

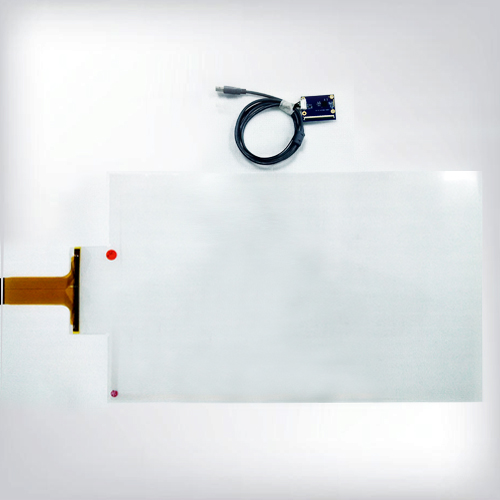

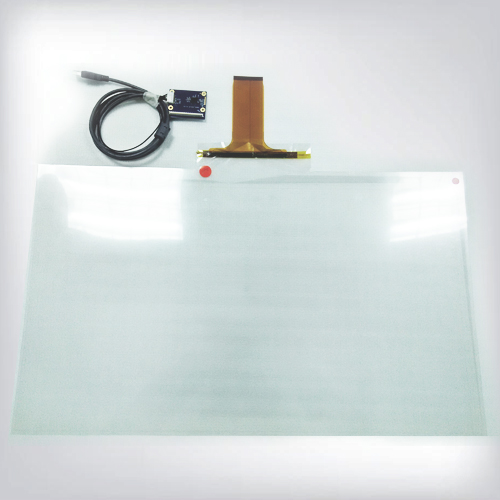

A complete Touch foil contains the following 3 parts:
1. PET sensor film, which seal the conductive nano-wires.

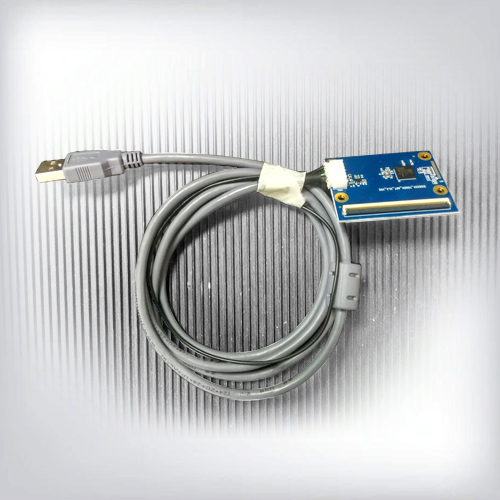

2. Control circuit board and protection cover with USB cable.
3. Software Driver For Calibration.

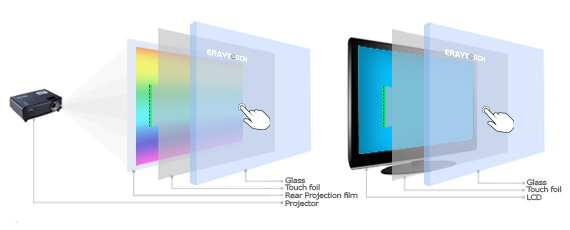

How to Use it:
For Touch Foil, we offer two kinds of film one is adhesive (permanent use), another is non-adhesive (removable). When you make an order, pls inform us what you need.
ITEM
METAL MESH SENSOR
Technical principle
Double Layer Bridge projected capacitive Technology，
Metal mesh wire matrix with patented Graphics Sustituted for ITO layer
Series
mm80p
Size
15-24inch
Sensor Qty
1376
Touch points
10 point touch
Resolution
No limit
Touch Accuracy
≤2mm
Report rate
80-120point/ms
Response time
10ms
Consumption
0.5W-2W
Driver Type
HID
Arm Reject
Support
Customize
Size,Rtio,Tail,FPC
Thickness
≤100um
Transparency
90%-93%
Supply voltage
5V USB
Interface type
USB2.0, USB3.0, I2C
Transfer Distance
≤50m （USB Signal Amplifier ）
Cover lens
Suggested 3-12mm
Safe space
2mm（between LCD panel and sensor）
Working temperature
-20℃ to +70℃
Ambient Light
UV Cut 99%,180 degree
Touch function
Mouse Control(Point、Drag、Zoom、Rotate、Draw)
Sensor space
Suggested≤8mm
Alignment
Automatic
OS support
Android①、Linux②、Windows③
Progrm level
Standard HID-USB Device
Certify
EN 55022:2010/AC:2011, EN 55024:2010 IEC62321:2008
①Android support, Open HID-USB, Close report description.
②LIUNX support, please confirm the pplicable version.
③Windows support, win7/8/8.1/10 only pro/ultimate version for multi-touch, and open table pc element; XP series need driver pre-installed.
④Above technical data tested under 5mm glass over.
