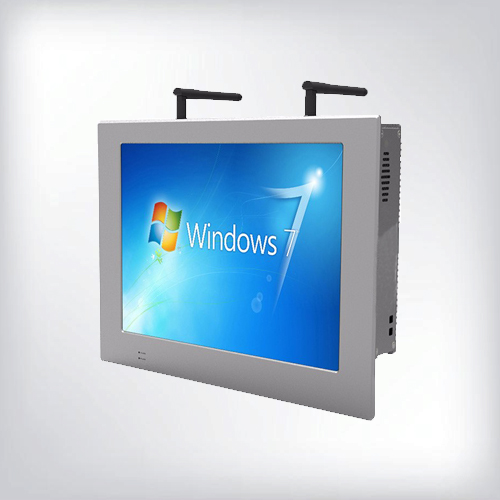

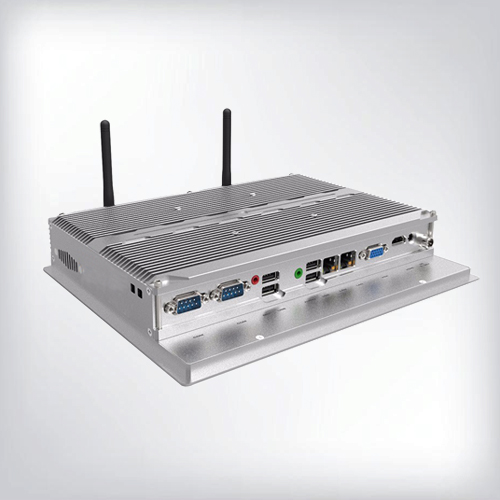

10.4" Industrial Fanless Touch Panel PC with Monitor
EPC-0104C-AL

Features:

• 10.4 inches All-Aluminum Fanless Cooling Structure Industrial PC.
• PC configuration is optional with windows Intel, Windows i3/i5/i7.
• 10 points capacitive touch screen with powerful interfaces.

Model No.	EPC-0104C-AL
Color	Sand-sanding silver
Outlet Size	268mm*210mm*48mm (L*W*H)
Structure	All-aluminum fanless cooling structure
Screen Size	10.4 inches
Resolution	800*600
Touch screen	Projected Capacitive Touch
CPU	Intel® Celeron CPU N2930 @ 1.83G~2.16GHz TDP 7.5W
Graphics	Intel® HD Graphics
Storage	On-board DDR3L 4GB high-speed memory flash
SATA	Support 1*2.5 Inches hard drive extended
SSD	1*128G SSD
Interface	2*DB9 RS232/4* USB 2.0/1* Power button/1* Line out/1* Mic 2*RJ45/1*DC/ 1*3Pin DC/2* WiFi /3G SMA Optional
Input	110v~220v
Output	12v 5A
Operation system	Windows 7/8/10 Linux
Installation method	Wall-mounted/ embedded
Working Temperature	-10°~60°
Storage Temperature	-20°~70°
Relative Humidity	5%~95% No condensation
Working Viberation	0.5g rms/5-500HZ/random/operating

Accessories(options):
1pcs Stand Shelf
1pcs motherboard cd driver
1pcs touch cd driver
1pcs 8A power adapter
Some Screws for Fixing the Shelf
