Features:
1.Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.
2.Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.
3.It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.
4.Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM.
5.10.4” LED display with resistive touch.
6.RS232 × 4, COM 2 supports RS485/232/422.
7.Wide voltage 6-32V for optional.
8.Metal housing design.
9.HDMI & VGA output.
10.Fanless cooling system.
11.Dual Ethernet port.
Model
EPC-0104R-P

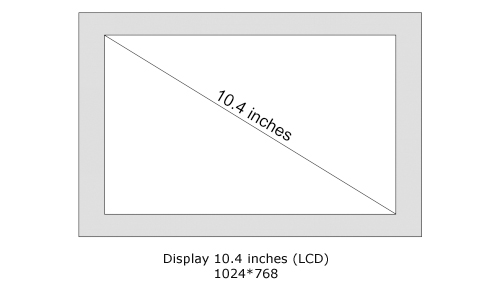

Monitor LCD
10.4 inch 4:3 digital panel
Resolution: 1024*768
Contrast: 320:1
Brightness: 300 cd/m2
Touch screen: SAW touch,IP54 front panel waterproof,anti-explosion,dust-proof
Visual angle: up/down 65-60 Deg/ - left/right 70-70 Deg
CPU
Intel Atom qual core I1900, 2.0GHz， mini computer processor
OS
Support Window XP/7/8/CE, Linux
Chipset
Intel GEN7
Memory
4 GB
Motherboard
Intel Atom qual core I1900 Fan-less Mini ITX Motherboard
Hard disk
HDD 2.5'' 500Gb
Graphics
GMA3650, support DX11.0
Storage
2*SATA 300MB/s ports
1*IDE

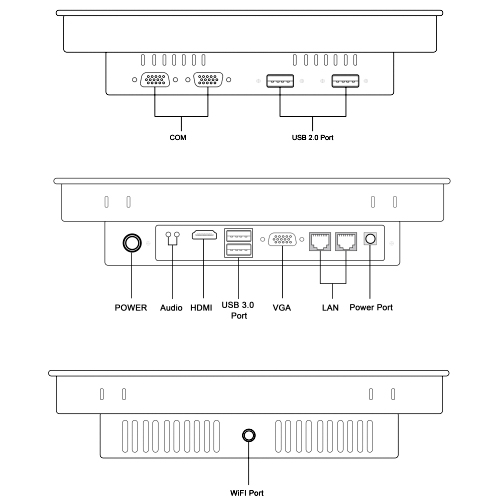

Interface
1*VGA port
1* HDMI port
4*USB 2.0 ports
2*RJ-45 port
2*com port
1*WIFI connector (optional)
DC connector
Power button
Integrated Inter HD Audio Controller
supports 2/4 channel Audio-out
Adapter
DC12V, AC100-240V, 50/60Hz
Dimensions
275 x 220 x 60mm (W/H/D)
Color
Black or silvery
Materials
Aluminum
Net Weight
2.6kg
Other information
Fingertip sensibility

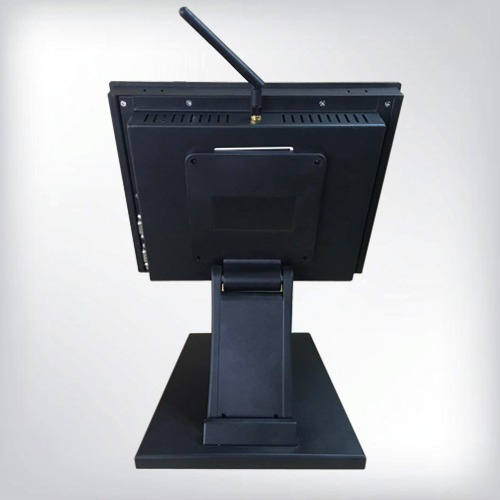

Holes for standard VESA
Accessories:
1pcs Stand Shelf

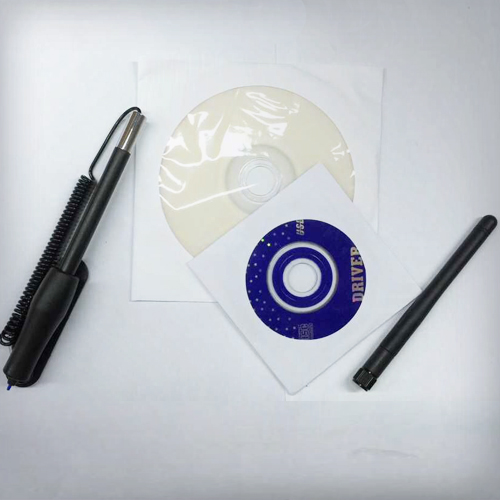

1pcs motherboard cd driver
1pcs touch cd driver

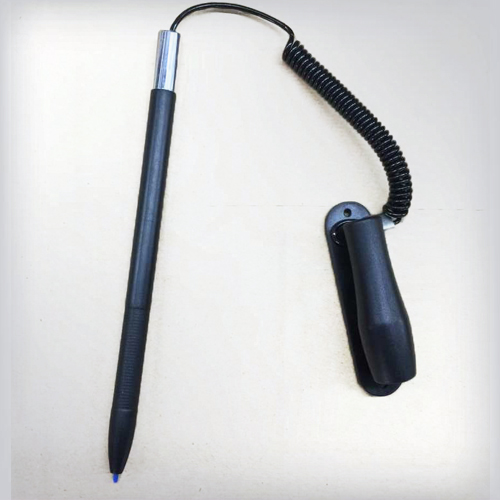

1pcs touch pen

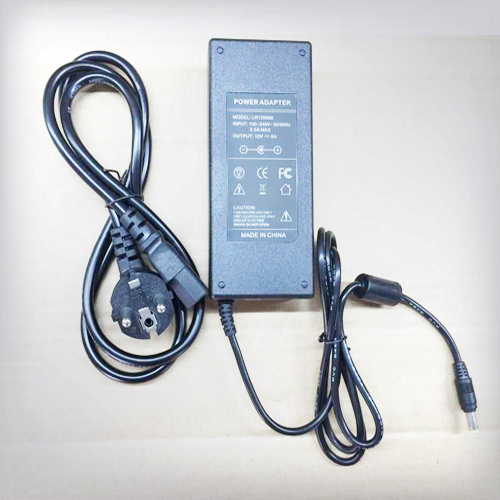

1pcs 8A power adapter
Some Screws for Fixing the Shelf touch pen cd driver power adapter
