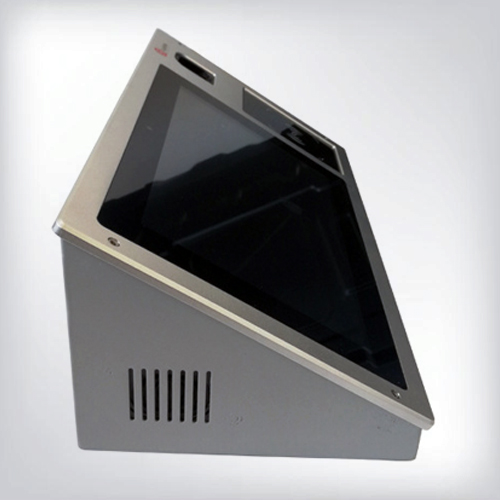

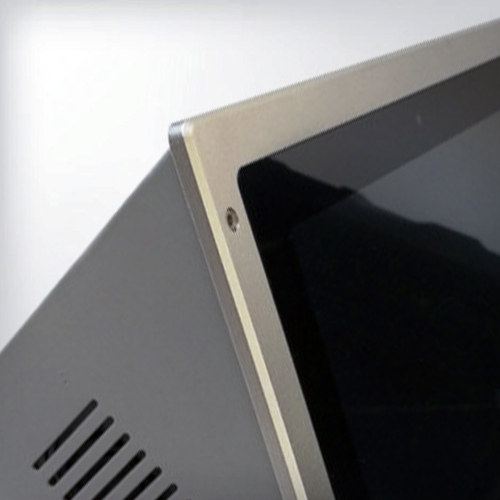

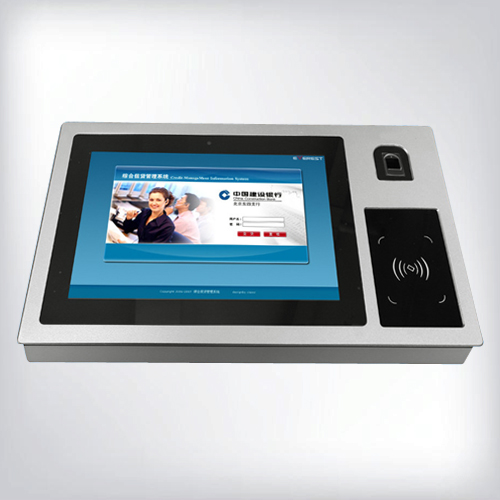

    Bank Self-service Identity Verification Intelligent Terminal
    EST-0101C-BC06



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    10.1 inches Self-service Identity Verification Intelligent Terminal EST-0101C-BC06 is a feature-rich and scalable information collection and verification all in one terminal.

    It integrates face, fingerprint (optional) and identity information collection and verification all in one, built-in ID card reader module and second-generation card fingerprint identification module, running fingerprint comparison algorithm and face recognition algorithm, not only can read ID card information It can also provide ID card fingerprint verification.

    At the same time, it also supports ID card photos and on-site camera to capture faces for identity verification, multiple verification methods, and accurate verification of user identity information.

    In addition to the identification and verification of personnel's identity information (ID card, fingerprint, face), and the hardware interface and functions of the machine (relay output, RJ45, voice, USB, battery), will meet the requirement of different scenario for different users.


    Applications:

    It has been widely used in the fields of finance, justice, military, public security, border inspection, government, aerospace, electricity, factories, education, medical and many other enterprises and institutions, etc.


    Remark: Customized Product.



    Display Parameters
    Screen Size 10.1" TFT LCD
    Screen Format 16:10
    Contrast Ratio 600:1
    View Angle 85x85x85x85
    Max Resolution 1280*800
    Brightness 330cd//m2
    Color 16.7M
    Motherboard Hardware Parameters
    CPU Eight-core A83T, 2.0GHz
    Operation system Android 6.0
    Memory DDR3 1G/2G optional
    Internal Storage NAND FLASH 8G(default)/16G/32G
    Display interface LVDS interface (single, 6-bit dual, 8-bit dual).
    Supports maximum 1920x1080 and 7"-82" display
    Touch Screen 10 points projected capacitive touch
    Onboard backlight 12V
    LCD voltage 3.3V/5V/12V optional
    Network RJ45, wifi & BT module
    Image rotation Support manual / automatic rotation (0/90/180/270 degrees)
    Support gravity sensing function
    Interface 3*USB HOST (1 motherboard, 2 small boards), 1*USB OTG
    Ports 1*serial port, support for external serial device modules
    (3G modules, NFC modules, printers, card readers, etc.)
    1*I2C port
    SD card Max 32GB
    USB camera Support
    Speaker D class large built-in speaker, 8 ohms / 3W
    microphone Support
    Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
    Video Supports 1080P decoding of H.264, VP8, RV, WMV, AVS, H.263,
    MPEG4 and other video formats, online video such as YouTube,
    up to 1080P, HTML5 video play, Flash 10.1 play
    Image Support JPG, BMP, PNG and other image formats to browse and
    support rotation / slide show / picture zoom function
    Real time clock built-in real time clock powered battery
    Operation Guidance Screen guidance, Voice guidance & Light guidance
    Power Input: AC100-240V.50-60HZ, Output: DC12V 3A
    Application Enviroment Working temperature:-20~50℃ Working Humility:25~85%
    Accessories:

    1pc power adapter
    Other customized accessories
