43＂ Outdoor Water-proof Kiosk / Digital Signage
ET43DO

Eraytouch ET43DO is 43 inches outdoor floor stand all in one kiosk, it is an IP65 water-proof industrial standard product with touch option.

Features:
• Brightness: 3000nits UHD
• Android RK3188 1G+8G
• Panel screen brand: LG
• Thickness of tempered glass 6mm
• WiFi support
• Wheels with locks (4 pcs)
• Cooling system
• Super protection grade IP65

Model	Specification	Parameter
LCD panel	Panel size	43 inch

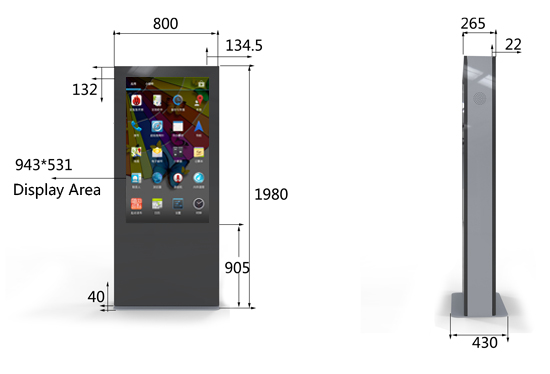

	Display Area	943(H) × 531(V) mm
	Display Mode	16 : 9
	LCD Type	TFT-LCD
	Max Resolution	1920 × 1080
	Display color	16.7 M
	Contrast	1000 : 1
	Brightness	3000nits
	View-angle	178°/178°/178°/178°
	Response Time	8ms
	Field Frequency	50/60/70 Hz
OSD Language	English/ other languges
Touch	Nano touch	Optional
Multimedia  system	AOLSEE	information release system
	System	Android 6.0
	Support content format	support wmv, avi, flv, rm, rmvb, mpeg , ts, mp4 etc
	Frequency	MP3, WMA
	Picture	support BMP, JPEG, PNG, GIF etc
	play File format	PDF, WORD, EXCEL, PPT
Mainboard  configuration	CPU	RK3288  4Core  1.8GHz
	DDR	DDR 2G
	internal memory	EMMC 16G
	wifi	support
Cooling system	Fan cooling system (Air condition cooling system optional)
The onboard  interface	HDMI	1080p
	AV	Support audio and video input
	internet access	RJ45, 10M/100M Adaptive Ethernet
	TF	extendable 32G
	USB	USB2.0
Power	Audio system	Built-in 8 Ω 10 w * 4 speakers
	Power	AC 100 ~ 240 V, 50/60 Hz The damage resistance is consistent
	The maximum power loss	≦500W
	Standby power loss	＜3W
Environmen	Operating temperature	-10℃~50℃
	Storage temperature	-20℃~60℃
Structure	Frame material	SGCC（thickness 1.5mm，GA/T 73-1994 B grade
	Outdoor protection	Waterproof, dustproof, anti-theft, anti-lightning, anti-biological, anti-corrosion, anti-magnetic, anti-static, etc.
	level of protection	IP65
	protective time	20 years or above
	Fuselage size (LxHxT)	Custom-made models
	Range of application  and Installation	Outdoor floor standing
Optional external  equipment	Cellular enabled	R5 4G Moudle
	Cooling with locks	4 pcs (Diameter 125mm)
Other functions	Play Settings can be set according to different requirements such as playing times,  playing content, etc.
	Can set timing switch machine;
	Screen support split screen display;
	Can show the time, weather;
	Advertisements and announcements can be interrupted;
	Brightness can be automatically adjusted according to the intensity of surrounding light.

Accessories:
1pc x Power cord
1pc x User manual
4pcs x Wheels (optional)
