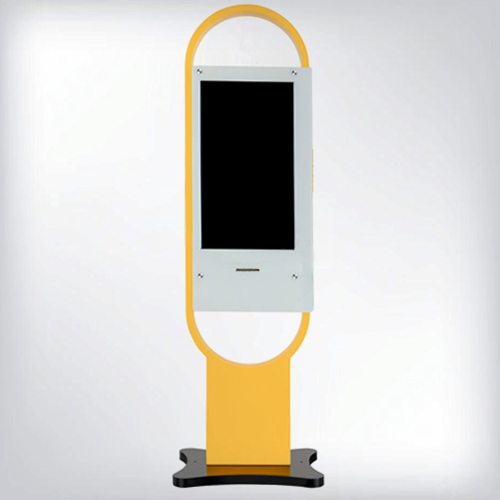

32＂ IR Touch Floor Stand Ordering Kiosk
ETK-0320I-MF

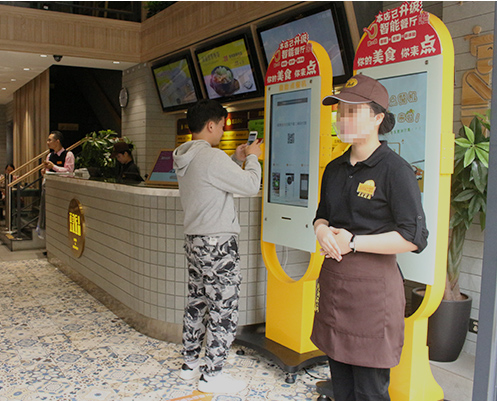

Eraytouch ETK-0320I-MF is 32 inches IR touch floor stand all in one touch kiosk, it is an industrial standard product, it has been widely used in restaurant, Fast-food store etc.

General Parameters
Display size	32-inch
Product Dimension	175mm Height
Packing Material	AL case
Surface Technology	Brushed Aluminum front frame cover, Fine grain processing metal case anti-corrosion
Printer	80mm thermal printer, half-cut, printer head module,  mother board
Display Parameters
Aspect Ratio	16:9
Max. Resolution	1920*1080
Contrast Ratio	>3000:1
Brightness	700cd/m2
Colors	16.7M / 8 bit
Viewing Angle	Full View 178/178
Pixel Pitch	0.51mm×0.51mm
Response time	6ms
Life(hrs)	>70,000(hrs)
Touch Screen Parameters
Touch Point	4 points
Touch Type	IR
Interpolation Resolution	4096*4096
Response Time	<16ms
Touch Surface	Super tempered glass
Physical hardness	Morse level 7
Touch the accuracy	Over 90％Touch area is ±2mm
PC board Parameters
CPU	Android RK3288 Quad Core
RAM	2G DDR3
Storage	8G
Resolution	1920*1080 Intel HD Graphics
Network	Ethernet/Wifi/Wireless peripheral extension
Ethernet	*1, 10M/100M Adaptive Ethernet
USB	2*USB 2.0, 2*USB 3.0
Input Voltage	AC100-240v 50/60HZ
Standby Power	≤1W, support low power standby mode
Rated Power	≤150W
CPU/RAM/Storage/Interfaces all can be customized according to specific project requests.

Accessories:
1pc x Power adaptor 12V/3A
1pc x User manual
4pcs x Screws
