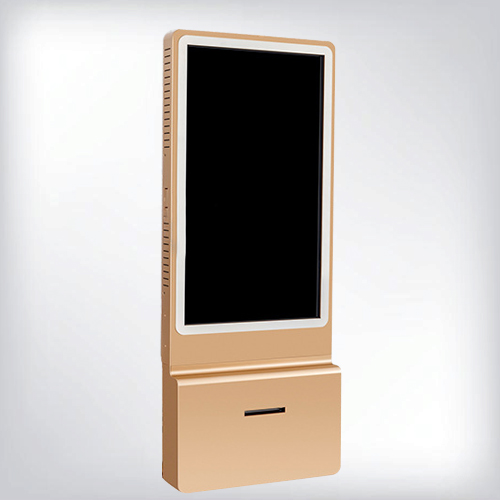

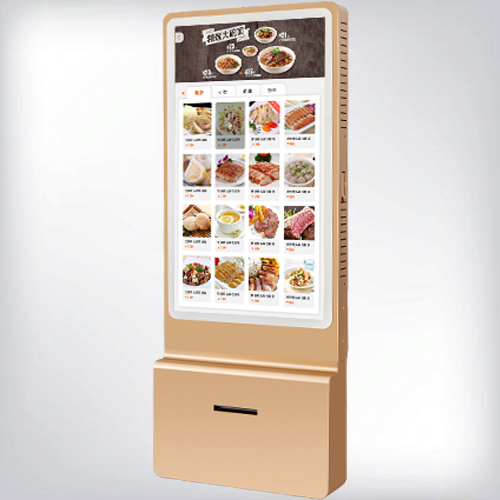

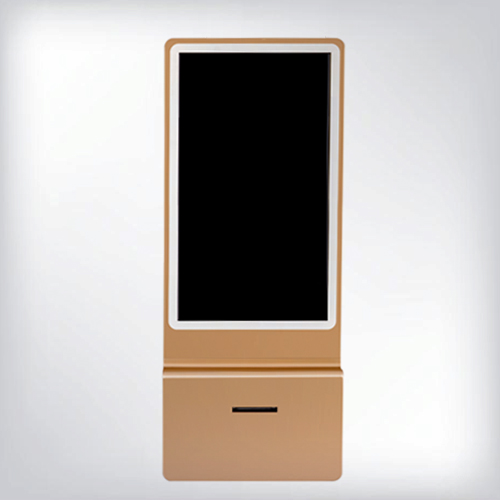

23.6＂PCAP Touch Wall-mounted Ordering Kiosk
ETK-0236C-AW

ETK-0236C-AW is a 23.6＂PCAP Touch Wall-mounted Ordering Kiosk, it has been widely used in restaurant, Fast-food store etc.

Features:

• Ultra-thin body. The maximum size can be controlled to 42mm, easy to install.

• Independent extension design. Independent extension design reduces construction difficulty while greatly reducing application costs.

• Exquisite appearance. The surface adopts aluminum alloy integrated pure flat design, reasonable layout, beautiful appearance, can support 10.1-32 inches.

• High integration. This series of products integrate Ethernet, wifi, Bluetooth, power amplifier, SD card, 5-way USB and 3-way serial port, GPIO and I2C interface, perfect support for mainstream USB/serial devices, printers, card readers, password keyboards, fingerprint readers, Camera, ID card identification, QR code scanner, etc., provide demon test program.

• Built-in 3G/4G interface, supporting mainstream modules such as Huawei, Longshang, ZTE, Domain, and Meige, supporting Internet access and calls.

• High stability.  This series of products is added our own unique technology to ensure the stability of the product, can make the final product unattended 7*24 hours.

• Android and X86 Industrial mainboard sulotion (1037U, J1900, I3, I5, I7) CPU options.




Display Parameters
Screen Size	23.6" TFT LCD
Screen Format	16:10
Contrast Ratio	1000:1
View Angle	85x85x85x85
Max Resolution	1920*1080
Brightness	350cd//m2
Color	16.7M
Motherboard Hardware Parameters
CPU	Quad-core Cortex-A9  GPU Mail-400 @ 533MHz, 1.6GHz
Operation system	Android 6.0
Memory	DDR3 1G/2G optional
Internal Storage	NAND FLASH 8G(default)/16G/32G
Display interface	LVDS interface (single, 6-bit dual, 8-bit dual).  Supports maximum 1920x1080 and 7"-82" display
Touch Screen	10 points projected capacitive touch
Onboard backlight	12V
LCD voltage	3.3V/5V/12V optional
Network	RJ45, Ethernet, wifi & BT module
Image rotation	Support manual / automatic rotation (0/90/180/270 degrees)  Support gravity sensing function
Interface	3*USB HOST (1 motherboard, 2 small boards), 1*USB OTG
Ports	1*serial port, support for external serial device modules  (3G modules, NFC modules, printers, card readers, etc.) 1*I2C port
SD card	Max 32GB
Camera	Support USB camera, DVP camera (max 500W pixels)
Speaker	D class large built-in speaker, 8 ohms / 3W
microphone	Support
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video	Supports 1080P decoding of H.264, VP8, RV, WMV, AVS, H.263,  MPEG4 and other video formats, online video such as YouTube,  up to 1080P, HTML5 video play, Flash 10.1 play
Image	Support JPG, BMP, PNG and other image formats to browse and  support rotation / slide show / picture zoom function
Real time clock	built-in real time clock powered battery
Operation Guidance	Screen guidance, Voice guidance & Light guidance
Power	Input: AC100-240V.50-60HZ, Output: DC12V 3A
Application Enviroment	Working temperature：-20～50℃ Working Humility：25～85%

Accessories:

1pcs power adapter
Other customized accessories
