    Home > Products > Digital Signage > Transparent LED >

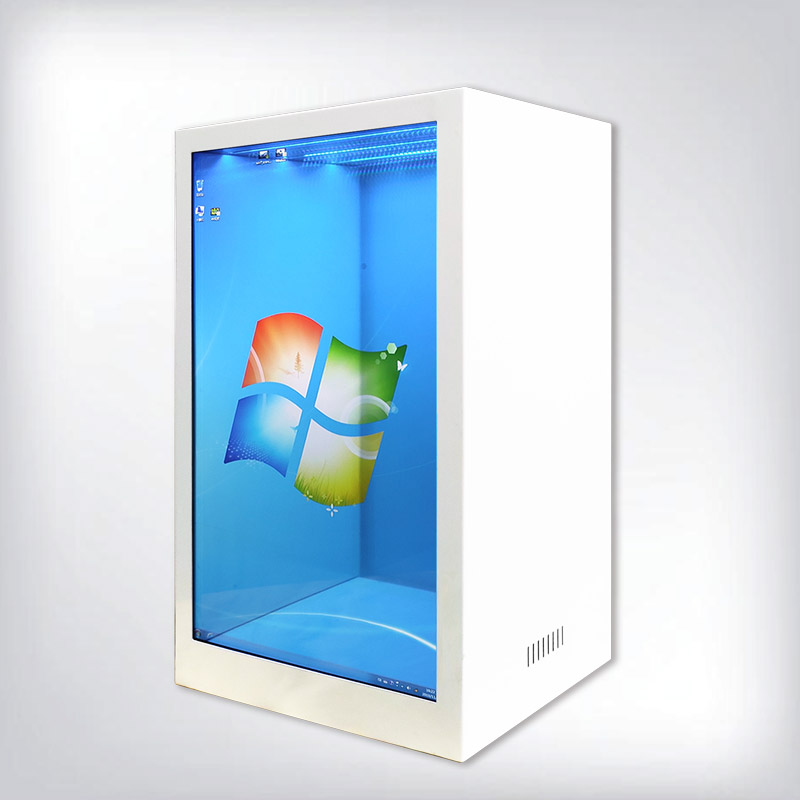

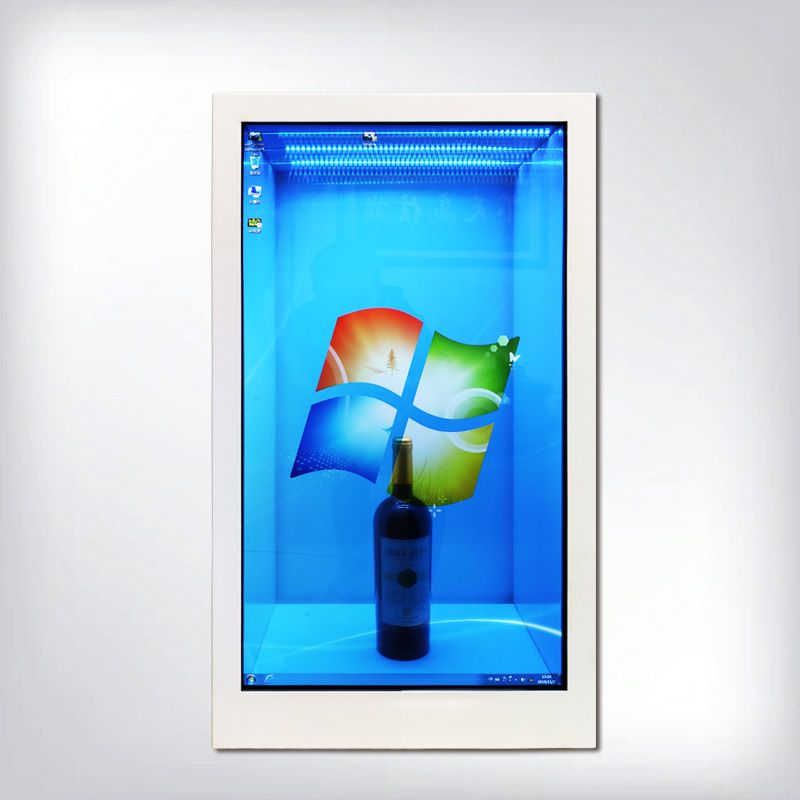

    32" PCAP Touch Interactive Transparent LED Display
    ETTD-0320C-A2



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    Eraytouch ETTD series are 21.5~65 inches IR/PCAP Touch Interactive Transparent LED Display, which can advertise the physical goods in the box, release the product information. Simple and fashion.

    Features:
    1. The transparency of this transparent screen is leading in the industry.
    2. The screen is produced in the dust-free workshop throughout the process, with the strictest quality control system.
    3. The display cabinet adopts the way of front / rear opening door to take / take display of physical objects, which is convenient for different places to operate.
    4. With transparent display, you can play the advertising introduction of the promotion display, interact with online and offline, and you can see the clear physical display through the screen.
    5. Layout in places with high traffic or modern high-tech, can not only promote products and ideas, but also can be used as a carrier of advertising to achieve double profits.
    6. The product meets the current functional requirements of virtual reality, has a very good display experience, and has a very high-tech feel.

    Application areas:
    Available areas: mostly crowded areas, such as streets, communities, tourist attractions, office buildings, shopping malls, shopping centers, bars, hotels, airports, libraries, and so on.
    High product coverage: such as daily necessities, luxury goods, crafts, etc.


      Model No. ETTD-0320C-A2
    System Processor Android (Intel J1900/i3/i5 optional)
    RAM 2/4/8G
    ROM 16/32/64/120/256G SSD
    Graphic card integrated graphics
    Support O.S Android (Windows optional)
    Touch tech IR touch / PCAP touch screen
    Display Display size Vertical type 32"
    Active area (mm) 698 × 395 (H×V)
    Aspect ratio 16:9
    Screen type AMVA3, Normal black display, Transmissive
    Max resolution 1366 × 768 @60Hz
    Display Colors 16.7M, 72% NTSC
    Brightness(nits) 1500cd/㎡
    Contrast ratio 1500:1
    View angle 89/89/89/89
    Response time 8ms

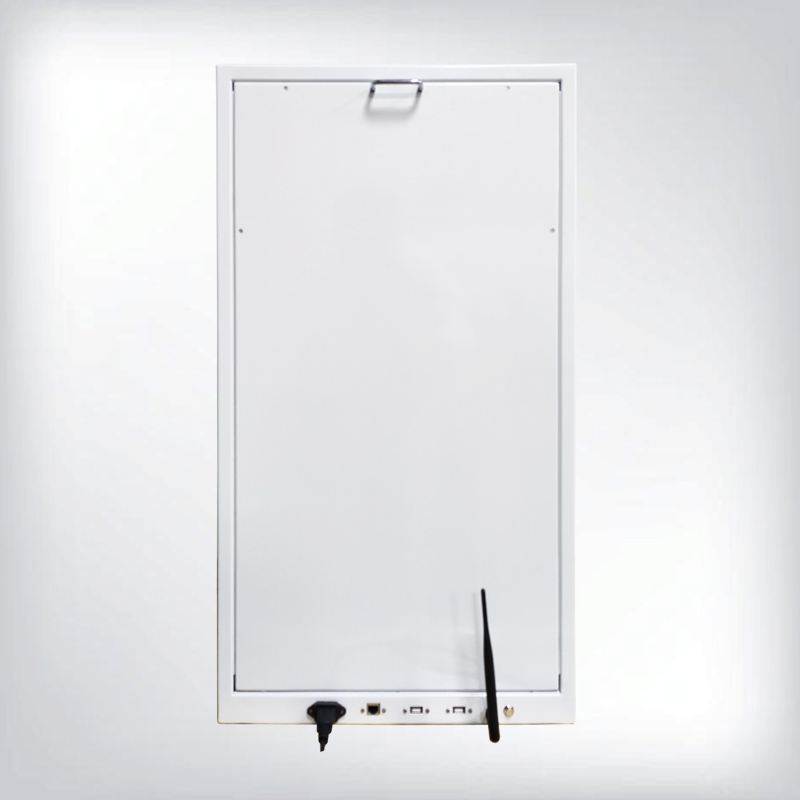

    Multiple interfaces USB USB2.0*1
    RJ45 *1 (10M/100M Ethernet)
    HDMI *1 (Max 1080p output)
    TF card slot *1 (Max 32G)
    AV *1 (Support audio and video input)
    Optional interfaces Customized
    Multimedia system Terminal Management Software B/S architecture release software
    AOLSEE Information release system
    Support content format Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.
    Firmware upgrade method TF card brush firmware / line brush firmware
    Audio MP3, WMA
    Picture BMP, JPEG, PNG, GIF
    File playback format PDF, WORD, EXCEL, PPT
    Accessories:
    1pc x Power adaptor
    1pc x User manual
    Other optional accessories
