    Home > Products > Digital Signage > Plastic > Touch Tablet >

    15.6"L-type Touch Tablet (built-in battery)
    ETDS-0156C-P04A



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    Eraytouch 15.6-inch 10 pionts projected capacitive touch all in one tablet PC, Octa-Core Processor, 1.5GHz, Android 6.0, 1G+8G.

    ●Ultra-thin and ultra-light design, beautiful and easy to use

    ●LG brand IPS screen, high contrast, high brightness, greatly improve the layering of the picture, better performance details

    ●With automatic elimination of afterimage, protect the long-term use of the LED screen

    ●With image re-display rate automatic adjustment function

    ●16.7M color, the picture is more natural and delicate

    ●5ms fast response time, the picture is really no tailing

    ●Exquisite casing, shockproof and anti-jamming

    ●Low energy consumption, longer life of the LED screen

    ●Independent research and development, customized according to customer requirements

    Product Specification
    System CPU Octa-Core Cortex™-A53 CPU RK3368, 1.5GHz
    RAM 1G (upto 2G optional)
    Internal storage 8GB (upto 16G optional)
    Operation system Android 6.0
    Display LED screen 15.6" LG IPS screen
    Reolution 1920*1080
    Active area  (H×V) 344.16 x193.59mm
    View angle 85/85/85/85
    Contrast ratio 800:1
    Brightness 300cdm2
    Apect ratio 16:9
    Touch Touch Technology Projected Capacitive Touch (PCAP)
    Touch Points 10-point
    Touch response time <5ms
    Internet WiFi 802.11b/g/n included
    Ethernet Support 10M/100M
    Bluetooth 4.0

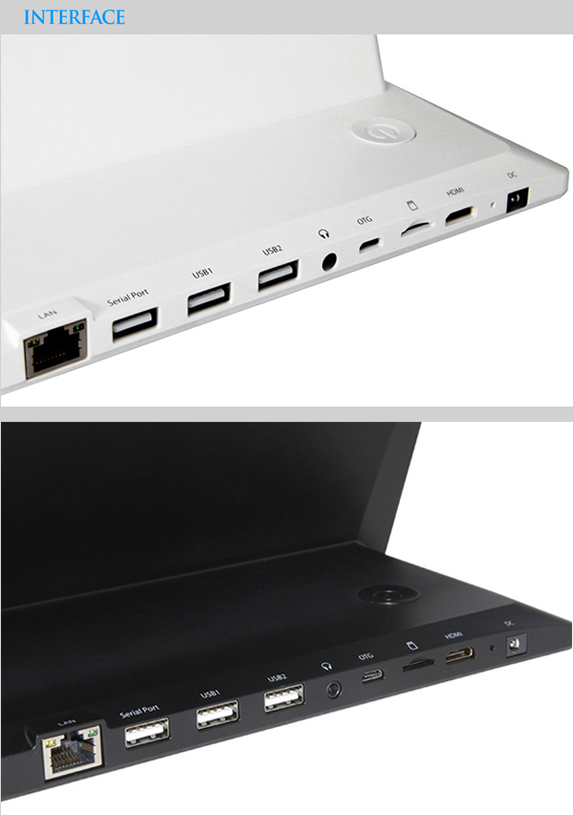

    Interfaces TF TF card (max 32GB)
    Mini USB USB OTG
    USB Host  USB Host 2.0 * 2
    RJ-45 Support (POE function optional)
    HDMI HDMI output
    Serial port Support (RS232)
    Power jack DC 12V power input
    Headphone jack 3.5mm Stereo earphone output
    Media player Video format MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc.,
    support up to 4Kx2K(H.264)
    Audio format MP3/WMA/AAC etc.
    Picture format jpeg, jpg
    Extra functions Built-in battery 4500MAh/7.4V, about 1.5 hours of work
    Mic. Support
    Speakers 2*1W
    Camera Front 5.0M/P with auto focus
    NFC Optional
    Card reader Optional
    OSD Languages Multiple languages OSD operation
    Power consumption 20W
    Operating temperature 0℃~40℃
    Stand Support

    Standard Accessories:

    Power adaptor x1
    User manual x1
