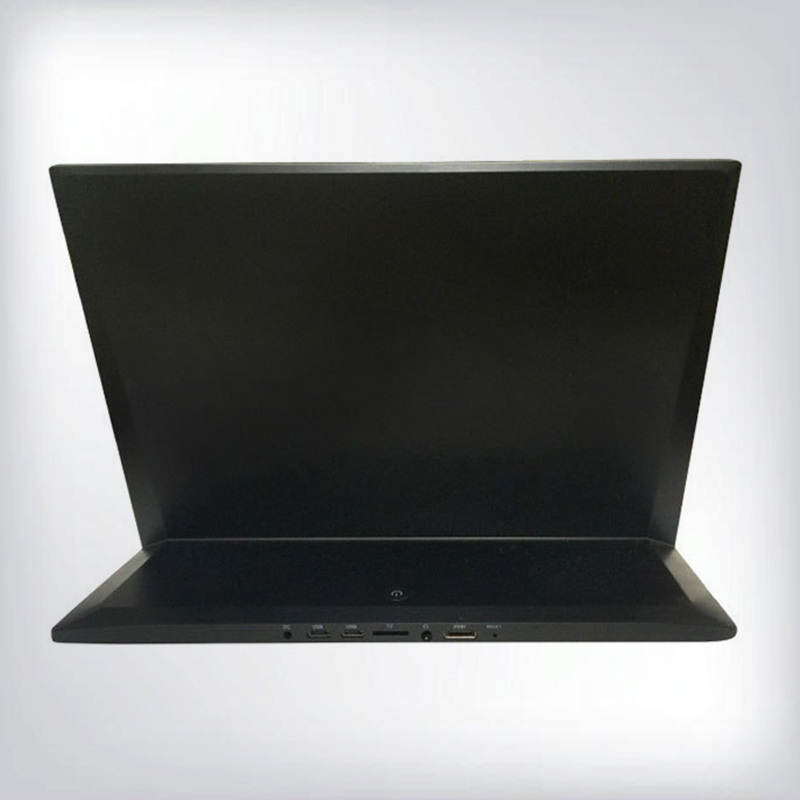

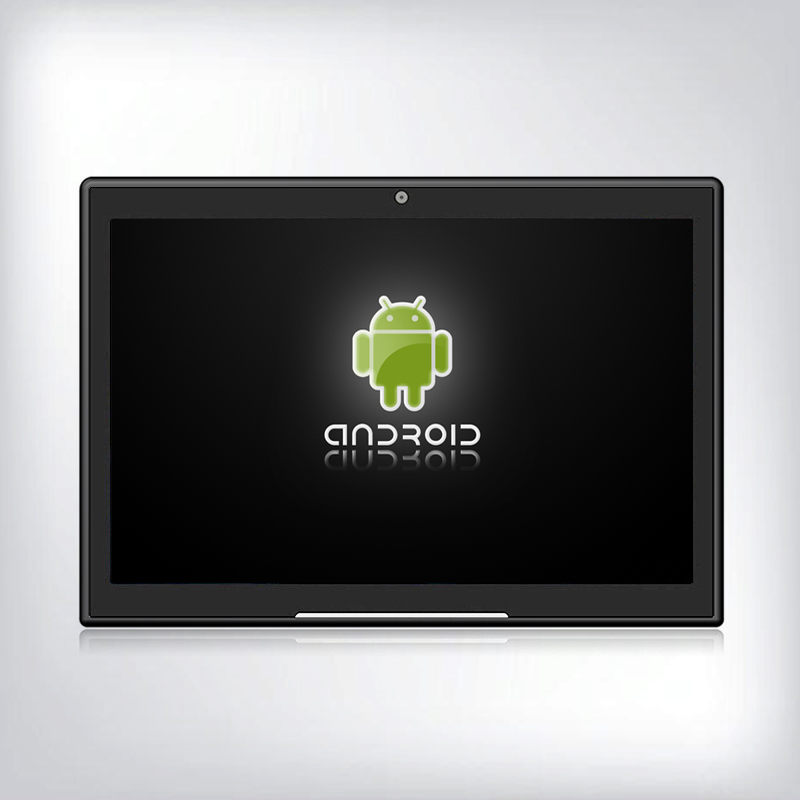

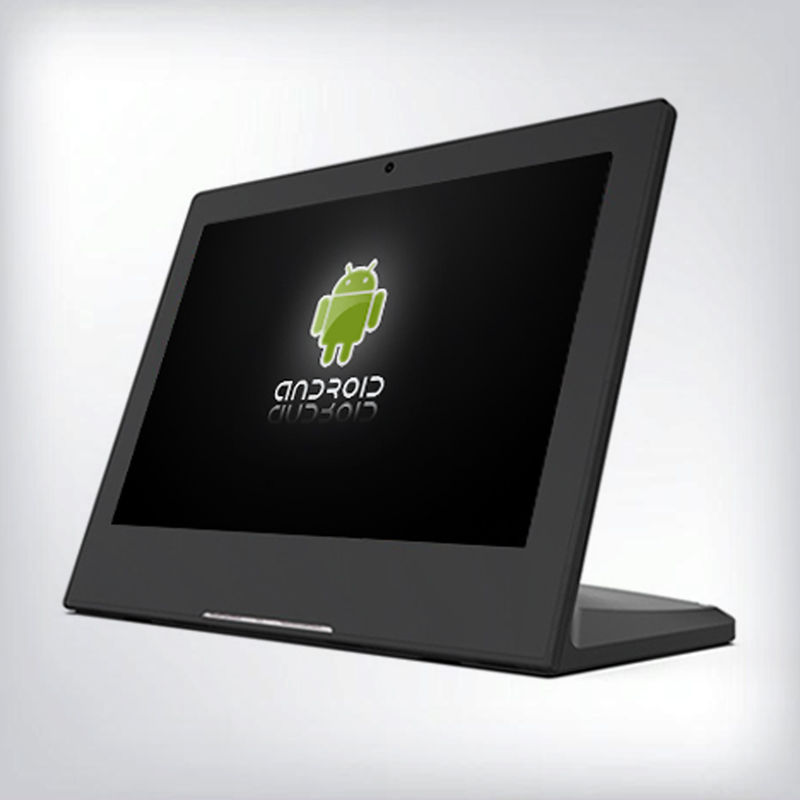

    10.1"L-type Touch Tablet PC (without battery)
    ETDS-0101C-P04AH



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    Eraytouch 10.1-inch 10 pionts projected capacitive touch all in one tablet PC, Quad-core Processor, 1.8GHz, Android 8.1, 2G+16G.

    ●Ultra-thin and ultra-light design, beautiful and easy to use

    ●High contrast, high brightness, greatly improve the layering of the picture, better performance details

    ●With automatic elimination of afterimage, protect the long-term use of the LED screen

    ●With image re-display rate automatic adjustment function

    ●16.7M color, the picture is more natural and delicate

    ●5ms fast response time, the picture is really no tailing

    ●Exquisite casing, shockproof and anti-jamming

    ●low energy consumption, longer life of the LED screen

    ●Independent research and development, customized according to customer requirements

    Product Specification
    System CPU Quad-core processor Cortex-A7 RK3288, 1.8GHz
    RAM 1G (upto 2G optional)
    Internal storage 8GB (upto 16G optional)
    Operation system Android 6.0
    Display LED screen 10.1" LED screen
    Reolution 1280*800
    Contrast ratio 800:1
    Brightness 300cdm2
    Apect ratio 16:10
    Touch Touch Technology Projected Capacitive Touch (PCAP)
    Touch Points 5-point
    Touch response time <5ms
    Internet WiFi 802.11b/g/n included
    Ethernet Support 100M/1000M
    Bluetooth 4.0

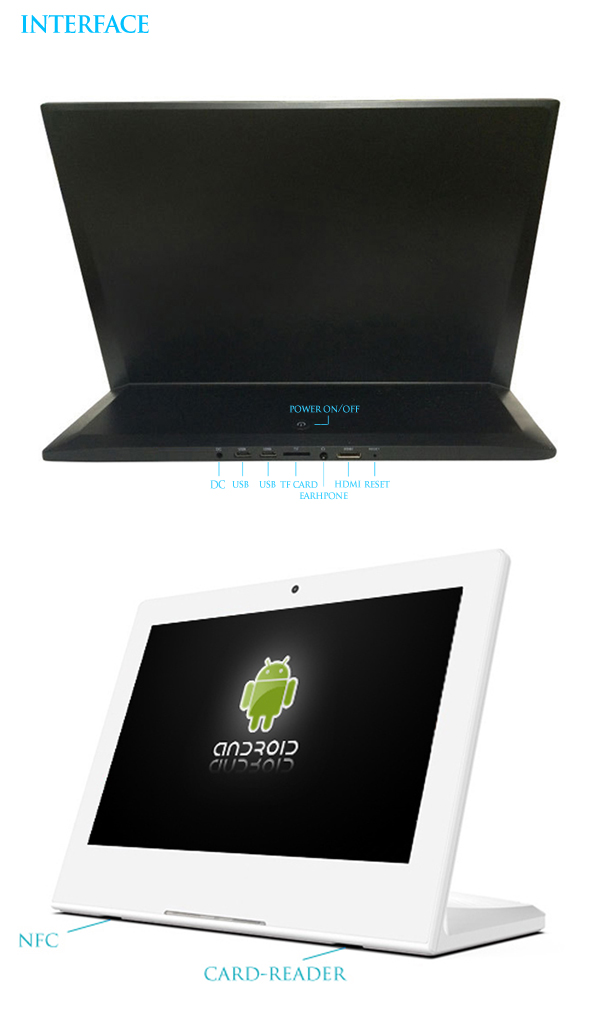

    Interfaces TF TF card (max 32GB)
    USB USB Slave ( connect computer)
    USB Host  USB Host 2.0 * 2
    RJ-45 Support (POE function optional)
    HDMI HDMI output
    Serial port Support (RS232)
    Power jack DC power input
    Headphone jack 3.5mm Stereo earphone output
    Media player Video format MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc.,
    support up to 4K
    Audio format MP3/WMA/AAC etc.
    Picture format jpeg, jpg
    Extra functions Mic. Support
    Speakers 2*1W
    Camera Front 200W
    NFC Optional
    Card reader Optional
    OSD Languages Multiple languages OSD operation
    Software support Skype/GPS/Game/Email/Android market etc
    Stand Support

    Standard Accessories:

    Power adaptor 5V/2A x1
    User manual x1
